Babban -Tsarin Ƙarƙashin Ƙarƙashin Ƙaƙwalwa
Fineco High-Load Raised Access Floor System yana ba da tsarin sarrafa ma'auni na ƙasa da nauyi{1}} tallafi na nauyi don manufa{2}}mahimman wurare. An ƙirƙira shi don mahalli masu tsayi-madaidaitan sabar uwar garken, rukunin rarraba wuta (PDUs), da na'urorin sarrafa masana'antu, wannan tsarin yana haɗa manyan manyan fale-falen ɗimbin yawa tare da sanyi{6} birgima na ƙarfe masu waldaran ƙafafu. Yana ba da fayyace hanyar ƙasa don HVAC, wutar lantarki, da cabling yayin jure wa tsayayyen bayanan martaba mai ƙarfi ba tare da nakasar tsari ta dindindin ba.
Mabuɗin Siffofin
Maɗaukakin Ƙarƙashin Ƙarƙashin Ƙarfafa -:Yana amfani da babban allo mai ƙyalƙyali na siminti ko duka{1}}ƙarfe welded ginin harsashi don jure ma'ana{2}} lodin murƙushewa.
Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarfafawa:Ƙunƙarar igiya da majalissar ƙafafu suna kulle bangarori zuwa madaidaicin jirgin sama a kwance, yana kawar da jujjuyawar gefe a ƙarƙashin kayan juyi.
Daidaita Tsawon Tsawo:Manyan sandunan ƙarfe masu zaren ma'auni{0}ma'auni da ƙwayayen kulle suna ba da damar daidaitaccen tsayin bene da aka gama (FFH) daga 150mm zuwa 2000mm.
Rushewar Electrostatic (ESD):Masana'anta{0}}Maɗaukaki Mai Girma-Laminate matsa lamba (HPL) ko ɓangarorin vinyl ɗin da aka gama yana kula da juriya tsakanin 1 × 10⁶ da 1 × 10⁹ ohms.
Tsarin Tsarin

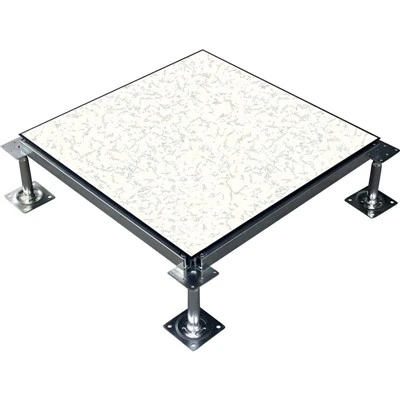

Dabarun bene:Matsakaicin madaukai masu canzawa (yawanci 600mm × 600mm) da ke nuna kariyar lantarki{2}}galvanized ko epoxy{3}} fatun karfe mai rufi.
Tattaunawar Tafarki:Ya ƙunshi farantin tushe (min. 100cm²), tururuwa mai zare a tsaye (M18/M20), mutu{3}} simintin kan karfe tare da haɗaɗɗun shafuka masu gano igiyoyi, da goro mai daidaitawa.
Zaure:Snap{0}}a kan ko ƙulla tashoshi na ƙarfe na tubular tubular masu haɗa kawunan ƙafa don samar da madaidaicin grid, ƙara kwanciyar hankali na gefe da ƙarfin lodi iri ɗaya.
Gasket:Ƙaƙƙarfan faifan PVC/roba yana manne da kawunan ƙafafu don kawar da girgizar sauti da kuma hana ƙarfe{0}}a kan-ƙarfe.
Ƙididdiga na Fasaha & Tabbatar da Gwaji
|
Siga |
Ƙayyadaddun Bayani |
Tabbataccen Matsayi / Hanyar Gwaji |
|
Girman panel |
600 mm × 600 mm (akwai girman girman al'ada) |
Jurewar masana'anta: ± 0.2 mm |
|
Daidaitaccen Kauri |
30 mm / 35 mm / 40 mm |
Tabbacin girma ta ISO 9001 QC |
|
Core Materials |
Ciminti Barbashi Board / Calcium Sulfate / Welded Karfe Shell |
Yawa: Mafi girma ko daidai da 1500 kg/m³ (Calcium Sulfate) |
|
Ƙarfin Ƙarfin Ƙarfafawa |
CISCA Mataki na 8 / Mataki na 10 (3.56 kN zuwa 4.45 kN) |
Na uku -An Tabbatar da Jam'iyya: Rahoton Gwajin SGS akan fayil |
|
Ƙarshen Ƙarfin Load |
Mafi girma ko daidai da 11.1 kN |
An gwada ta hanyar CISCA / EN 12825 |
|
Ƙarfin lodin Uniform |
15 kPa zuwa 22 kPa |
Matsakaicin juzu'i na dindindin <0.25 mm |
|
Tsayin Wurin Ƙarshe (FFH) |
150 mm zuwa 2000 mm |
Daidaitacce ta M18/M20 nauyi - sandar ma'aunin ƙarfe |
|
Resistivity na Surface |
10⁶ zuwa 10 ohms |
An gwada zuwa EOS/ESD S7.1 |
Ayyukan Seismic
An ƙirƙira don turawa a yankunan girgizar ƙasa masu buƙatar ingantaccen tsarin tsari.
Juriya na Load na Layi:Yana tsayayya da rundunonin juzu'i a kwance ta hanyar haɗin haɗin kai masu nauyi da aka toshe masu nauyi da tsarin girgizar ƙasa.
Rage Sway:Haɗa bututun takalmin gyaran kafa na diagonal waɗanda aka makala zuwa ƙasan bene, yana iyakance matsananciyar matsananciyar ƙaura a lokacin abubuwan girgizar ƙasa.
Martani mai ƙarfi:Ƙirƙirar injiniya don hana ɓarna panel daga kan ƙafar ƙafa yayin jujjuyawar tsari.
Aikace-aikace na yau da kullun
Cibiyoyin Bayanai na Hyperscale:Yana goyan bayan manyan rumbun sabar uwar garke, sabar ruwan wukake, da tsarin ajiyar baturi mai nauyi. (Tsarin Kwanan nan: 12,000 m² Wurin Cibiyar Bayanai na Tier III, Frankfurt, Jamus).
Kayayyakin launi:Yana ba da damar daidaitawa ga ɗakunan uwar garken uwar garken da yawa{0} waɗanda ke buƙatar sake daidaitawa akai-akai.
Sarrafa Masana'antu & Dakunan SCADA:Gidajen na'urorin kwantar da tarzoma na atomatik, kayan aikin wuta, da tashoshi masu saka idanu. (Tsarin Kwanan nan: Cibiyar Kula da Wutar Lantarki na Yanki).
Wuraren Tsabta & Semiconductor Labs:Yana sarrafa ƙayyadaddun ƙayyadaddun abubuwa kuma yana sarrafa babban rabon iska mai kwandishan ƙarƙashin bene (laminar iska).
Shigarwa & Daidaitawa
Shirye-shiryen Ƙarƙashin Ƙasa:Yana buƙatar tsattsauran ramin kankare mai daidaitacce da aka yi wa maganin dattin ƙura mai ƙura.
Hakuri na Shigarwa:An shigar da shi ta amfani da kayan haɓaka laser; juriyar tsayin tsayin tsaye an iyakance shi zuwa ± 1.5 mm a fadin tazarar mita 5.
Cutout na Musamman:Masana'anta ko rukunin yanar gizo{0}}Mashinan grommets na kebul, fale-falen goga, da grates guguwar iska (yawan raɗaɗi daga 15% zuwa 55%) haɗe kai tsaye cikin shimfidar wuri.
Matsayi & inganci
An kera shi bisa bin ka'idojin gwaji na ƙasa da ƙasa:
CISCA (Ƙungiyar Gina Tsarin Rufi & Cikin Gida):Ƙayyadaddun ayyuka don samun damar benaye.
EN 12825:Ƙimar samun damar hawa benaye (An Rarraba ta hanyar karya kaya da karkatarwa).
ASTM E84:Halayen ƙona saman (Flame Spread Index 0, Fihirisar Haɓaka Hayaki Kasa da ko daidai da 25).
ISO 9001:Tsarukan gudanarwa na inganci da ke tafiyar da albarkatun albarkatun ƙasa, tambari, walda, da kuma tafiyar matakai.
Manufacturing & Project Support
Kayan Aikin Haɓaka:Matsakaicin matsi na ƙarfe na ƙarfe da yawa na atomatik, ƙwayoyin walda na MIG, da layukan shafa foda na lantarki.
A cikin - Gwajin Gida:Kowane tsari na samarwa yana fuskantar hujja mai lalacewa{0}}gwajin ɗorawa don tattarawa, jujjuyawa, da iyakoki na ƙarshe.
Tallafin Injiniya:Ƙirƙirar shimfidar CAD na al'ada, lissafin rarraba kaya, da kuma akan{0}} fakitin sa ido na fasaha na rukunin yanar gizo don manyan jigilar kayayyaki.
Tambayoyin da ake yawan yi
Tambaya: Menene matsakaicin matsakaicin ƙarfin nauyin wannan tsarin, kuma ta yaya ake gwada shi?
A: Fanalan aikin mu masu nauyi{0}} suna goyan bayan manyan lodi har zuwa 4.45 kN (CISCA Grade 10) tare da juzu'i na dindindin na ƙasa da 0.25 mm. Gwajin yana aiki da ƙafar ƙafar ƙafar 25mm × 25 mm a mafi rauni na panel (bangaren tsakiya ko kusurwa) kowane jagororin CISCA da EN 12825, wanda aka goyan bayan tabbataccen rahotannin dakin gwaje-gwaje na ɓangare na uku-.
Tambaya: Ta yaya tsarin ke ɗaukar nauyin mirgina daga raƙuman sabar uwar garken yayin shigarwa?
A: Tsarin yana amfani da tsarin grid ɗin da aka toshe haɗe tare da babban{0}}yawancin siminti ko duk{1}}ƙarfe masu waldaran ƙarfe. Wannan saitin yana rarraba kayan mirgina masu ƙarfi (an gwada har zuwa 4.5kN na mirgina tare da zagayowar 10,000) a kan ginshiƙai da yawa, yana hana rugujewar rukunin rukunin gida ko ƙugiya.
Tambaya: Menene bambanci tsakanin sulfate na calcium da simintious barbashi allo don aikace-aikace masu girma-?
A: Allolin siminti suna ba da ƙarfin matsawa na farko da kyakkyawan juriya, yana sa su tsada{0}}masu tasiri ga daidaitattun mahallin cibiyar bayanai. Calcium sulfate cores suna samar da ingantacciyar juriya ta wuta (A1 ba -mai ƙonewa), mafi girman yawa, ƙwanƙwasa sauti na musamman, da madaidaicin madaidaicin madaidaicin madaidaicin yanayin kaya.
Tambaya: Shin wannan tsarin bene mai tasowa zai iya haɗawa da buƙatun yankin girgizar ƙasa?
A: iya. Don Yankunan Seismic 3 da 4, muna ba da manyan kan ƙafar ƙafar ƙasa mai nauyi{3}, ma'aunin ma'auni, da tsarin takalmin gyaran kafa na gefe waɗanda ke ɗaure cibiyar sadarwa kai tsaye zuwa ginshiƙi, suna hana karkatar da gangar jiki da rugujewar tsari.
Tambaya: Menene lokutan jagora da ƙayyadaddun marufi don jigilar kayayyaki na duniya?
A: daidaitattun lokutan jagorar samarwa suna daga 20 zuwa kwanaki 30 dangane da girma da buƙatun yanke al'ada. An jera bangarori a tsaye akan ISPM 15-zafin da ya dace-wayoyin katako da aka yi wa magani, gefuna{6} an kiyaye shi da kumfa mai yawa, an ɗaure shi da ɗaɗaɗɗen ƙarfe, kuma an naɗe shi cikin shimfidar fim mai hana ruwa ruwa don amintaccen jigilar kayayyaki na teku.
